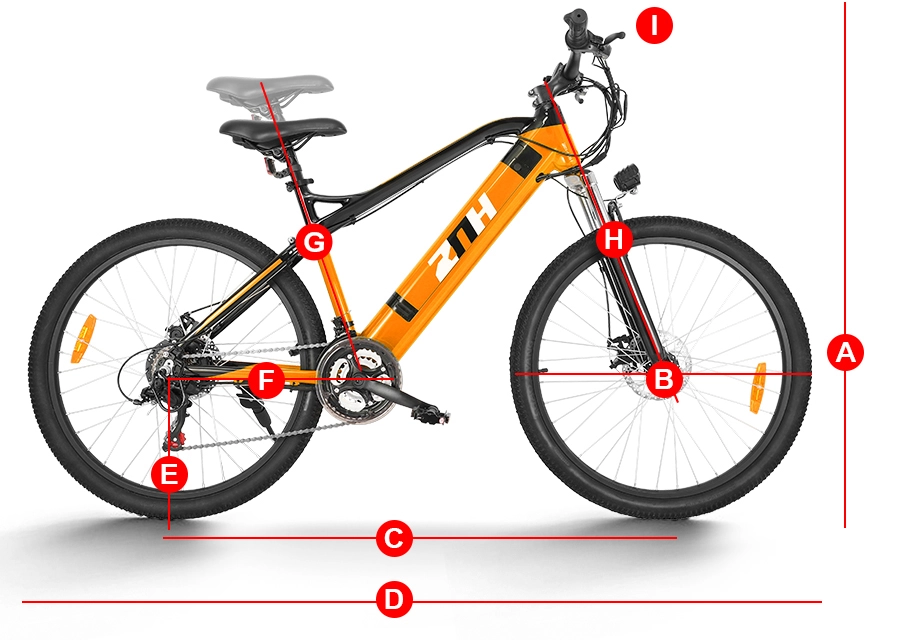

Geometry
| A---Handlebar Height-----39.4" |
| B---Wheel Diameter-----26.4” |
| C---Wheelbase-----42.1” |
| D---Total Length-----68” |
| E---Bottom Bracket Height-----13. 4" |
| F---Chain Stay Lenght-----15.7” |
| G---Seat Height-----31.5-41.7” |
| H---Head Tube Angle-----26.8° |
| I---Handlebar Length-----25.2” |
Specifications
| MODEL | ZNH E-BIKE Z3A |
|---|---|
| Battery: | 36V 10 Ah (360Wh) lithium battery |
| Range: | Up to 30 miles per charge |
| Hub Motor: | 350W brushless gear motor |
| Max Load: | 264 lbs (120kg) |
| Charger: | 36V, 2 Amp smart charger, operates on 100V-240V AC power outlets |
| Recommended Rider Heights: | 5'4" ~ 6'4" |
| Controller: | 36V, 350W frame-integrated controller |
| Weight: | 53 lbs (24kg) |
| Display: | LED display with charge indicator, pedal assist level |
| Modes: | 5 Levels of Pedal Assist, Throttle, Walk Assist |
| Lights： | Front: LED headlight; Rear: Rear reflector |
| Throttle: | Half twist throttle |
| Brakes: | Mechanical disc |
| Suspension: | Suspension fork |
| Gears: | Shimano 21-speed gears |
| Tires: | 26"x 1.95" |
| Frame: | 6061 aluminum alloy |
