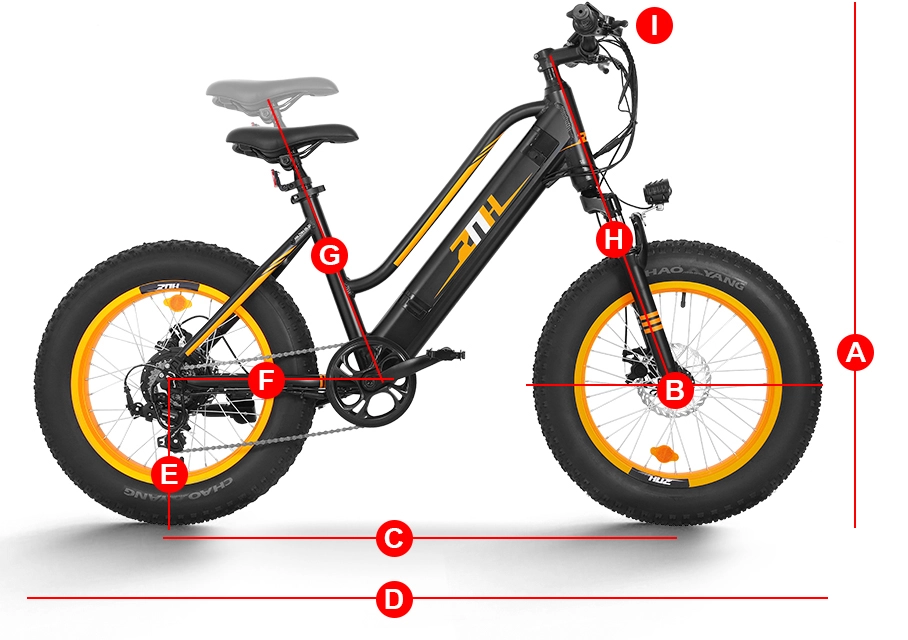

Geometry
| A---Handlebar Height-----33.4' |
| B---Wheel Diameter-----22.4" |
| C---Wheelbase-----41.3” |
| D---Total Length-----63” |
| E---Bottom Bracket Height-----12.6" |
| F---Chain Stay Lenght-----16.5” |
| G---Seat Height-----22-32.2” |
| H---Head Tube Angle-----30” |
| I---Wheel Diameter-----25.2" |
Specifications
| MODEL | ZNH E-BIKE Z5 |
|---|---|
| Battery: | 36V 10Ah (360Wh) lithium battery |
| Range: | Up to 30 miles per charge |
| Hub Motor: | 350W brushless gear motor |
| Max Load: | 264 lbs (120kg) |
| Charger: | 36V, 2 Amp smart charger, operates on 100V-240V AC power outlets |
| Recommended Rider Heights: | 5' ~ 5'8" |
| Controller: | 36V, 350W frame-integrated controller |
| Weight: | 53 lbs (24kg) |
| Display: | LCD display with charge indicator, speedometer, odometer, trip odometer, pedal assist level, clock, and more |
| Modes: | 5 Levels of Pedal Assist, Throttle, Walk Assist |
| Lights： | Front: LED headlight; Rear: Rear reflector |
| Throttle: | Half twist throttle |
| Speed | 2 settings (linear adjustment) |
| Brakes: | Mechanical disc |
| Suspension: | Suspension fork |
| Gears: | Shimano 7-speed gears |
| Tires: | 20"x 4" |
| Frame: | 6061 aluminum alloy |
